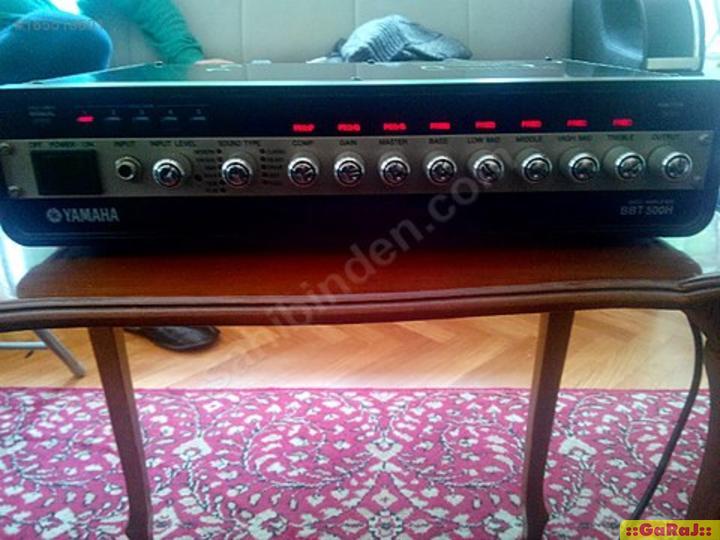

Ciğaz yenilemeden dolayı satıyorum.çizik yok tertemiz.güçlü ve kullanışlı alet.Hiçbir sorun yaşamadım... TEL 05427359995 MAİL
[email protected]
Power Amplifier Section Class-D power amplifier circuitry Output 500W/2Ω
Preamplifier Section All digital signal processing Sound Type: 11 Presets 5-Band Semi Parametric Tone Controls (Variable Frequencies) Parametric Equalizer (PEQ, F, G, Q)
Effect Section Compressor RATIO, THRSLD, ATTACK, RELEASE, C. GAIN, KNEE Limiter ON/OFF (SPEAKER, LINE OUT) Noise Gate N. GATE Crossover Filter LPF/HPF, Cutoff Frequency Speaker Simulator ON/LINE/OFF (SPEAKER, LINE OUT)
Effect Loop Monaural Send/Return, Level Switch (-20dB/+4dB), Effect Blend Control
User Memory 5 User Memory (Sound Type, Amp Settings, Compressor, Effect Blend)
MIDI Functions Receive Program Change, Control Change, Bulk In Transmit Program Change, Control Change, Bulk Out, Merge Out
Controllers/Switches Front Panel Control Knobs x 11, Push Switches x 7 Rear Panel Control Knob x1, Slide Switches x4
Displays Push Switch LED x5 Sound Type LED x11 7-Segment LED x3 Digit Input Level LED x2 (Green, Red)

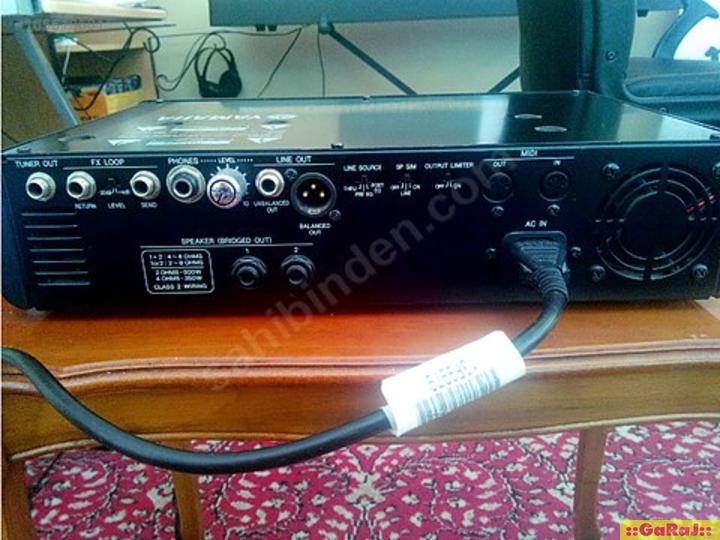

Connections INPUT: Standard Monaural Phone Jack SPEAKER 1, 2: Standard Monaural Phone Jack PHONES: Standard Stereo Phone Jack LINE OUT (UNBALANCED OUT): Standard Monaural Phone Jack LINE OUT (BALANCED OUT): XLR Jack FX LOOP (SEND/RETURN): Standard Monaural Phone Jack TUNER OUT: Standard Monaural Phone Jack MIDI IN, MIDI OUT: 5-pin DIN jack
A/D Conversion 24 bit
D/A Conversion 24 bit
Sampling Frequency 48kHz
Input Level/Impedance INPUT: -37dBm (thru)/1MΩ FX LOOP RETURN: -20dBm/220kΩ, +4dBm/220kΩ
Output Level/Impedance SPEAKER (BRIDGED OUT): 500W RMS/2Ω, 250W RMS/4Ω LINE OUT (UNBALANCED OUT): +4dBm/10kΩ LINE OUT (BALANCED OUT): +4dBm/600Ω FX LOOP SEND: -20dBm/100kΩ, +4dBm/100kΩ
Power Requirements U.S. and Canadian models : 120V, 60Hz General model : 230V, 50-60Hz
Power Consumption 130W
Dimensions (W x H x D) 378 x 88 x 265 mm (14-7/8” x 3-7-16” x 10-7/16”)
Weight U.S. and Canadian models : 4.7 kg (10 lbs. 6 oz) General model : 5.2 kg (11 lbs. 7 oz)
Accessories Power Cable Rack Mount Adaptors X2 Rack Mount Adaptor Screws X6 Owner’s Manual (this booklet) Clamp Filters X3 (U.S. and Canadian models only)
